Description

Rotel C8 Matrix Power Amplifier Description:

Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads.

The C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide the source and independent volume, bass and treble settings.  The custom 2U height requires no top or bottom clearance when rack mounting.

Like Rotel Products? Check Them Out: https://www.rotel.com/

• Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads utilizing Rotel’s proprietary amplification technology.

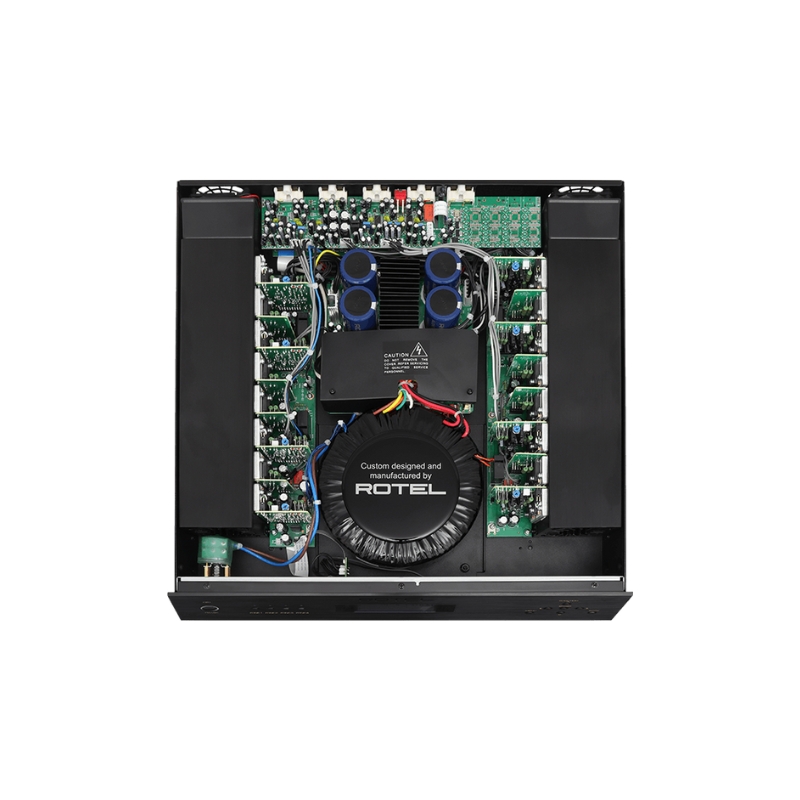

• The oversized in-house manufactured toroidal transformer drives sixteen output devices for effortless, controlled bass energy.
• For ultimate installation flexibility, the C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide the source and independent volume, bass and treble settings.

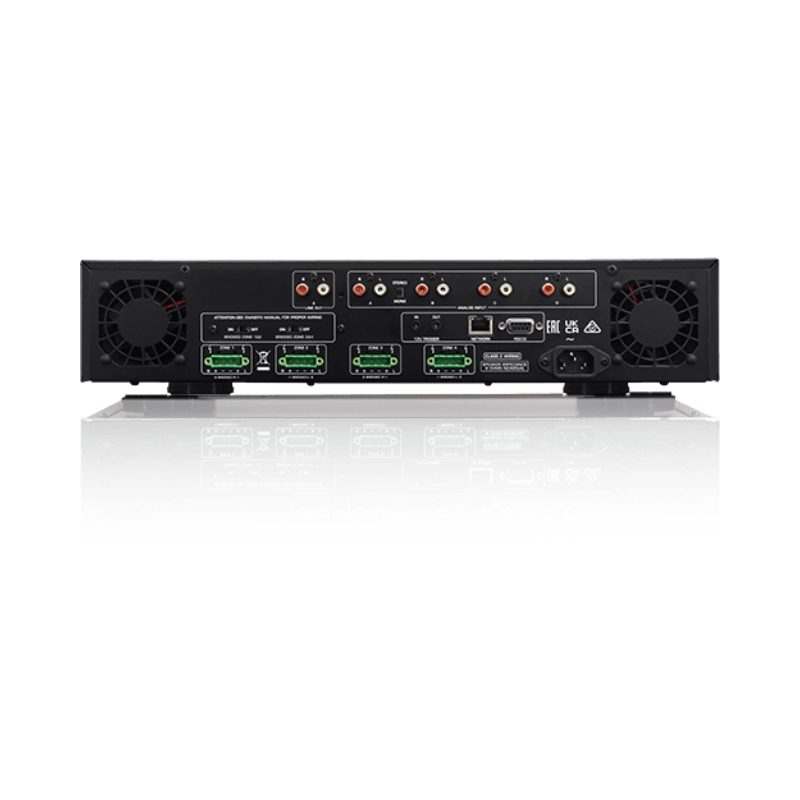

• Control system integration is available via IP and RS232 interfaces and a 12-Volt trigger.
• The custom 2U height requires no top or bottom clearance when rack mounting.
• The C8 is available in black only.

More Specifications

• INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.1%
• DAMPING FACTOR (20Hz – 20kHz, 8Ω): 80
• TONE CONTROLS: ± 10dB at 100Hz / 10kHz
• CROSSTALK / SEPARATION: >50dB
• INPUT SENSITIVITY: Line Level Inputs: 0.3V
• INPUT IMPEDANCE: Line Level Inputs: 31kΩ
• INPUT OVERLOAD: Line Level Inputs (RCA): 2.8V
