Description

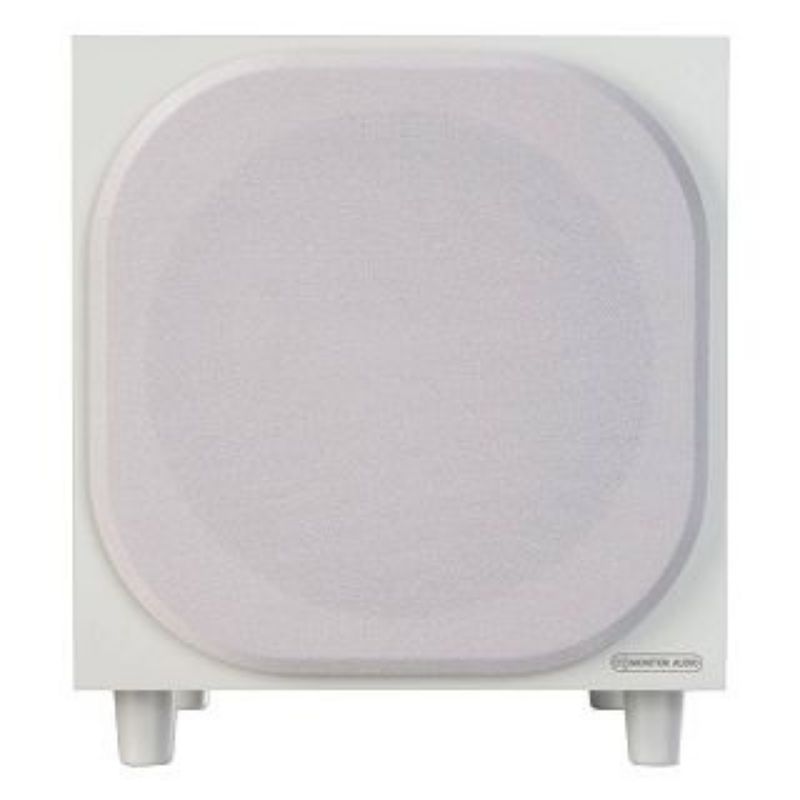

Description of the Monitor Audio W10 Subwoofer:

View on the Monitor Audio Website: https://www.monitoraudio.com/en/product-ranges/bronze/bronze-w10/

• The Bronze W10’s long-throw 254 mm C-CAM subwoofer driver combines with the 254 mm auxiliary bass radiator to bring a vivid realism to any performance.
• Our engineers have acoustically improved the driver and bass radiator by reducing the moving masses and tuning the compliances in the system to improve the transient response – kick drumsand explosions now have much more punch and precision.
• Reduced moving mass and improved rubber feet allows more energy to be transmitted directly into the room rather than being lost through mechanical vibrations through the floor and walls.
• The Bronze W10 is a stunning addition to any room.

Specifications of the Monitor Audio Bronze W10 Subwoofer:

• System Format: Long-throw 254 mm driver featuring ‘dished’ C-CAM cone. 254 mm flat panel ABR (Auxiliary Bass Radiator).
• 18 mm M.D.F. internally braced construction
• Lower Frequency Limit:  -3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field) Default preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room)
• Upper Frequency Limit: -6 dB @ 150 Hz
• Drive Unit Complement 1 x 250 mm C-CAM subwoofer driver featuring a 50.8 mm long throw voice coil
• Linear Driver Excursion: 17 mm peak to peak
• Amplifier Output: 220 W
• Amplifier Classification: Class D with high current Switch mode power supply (SMPSU)
• Phase Control: 0 Degrees & 180 Degree pure Invert
• Low Pass Filter Alignment: 4th order (24 dB/Octave), from 50 Hz to 120 Hz
• Equalisation DSP: 3 pre-set modes: Music, Movie, Impact
• Auto Sensing: Line Level >3mV. Auto Standby feature after 20 mins
• Audio Input/Outputs: LFE unbalanced input RCA
• Stereo unbalanced inputs RCA
• Input Impedance: 20 kOhms input impedance
• 12 V Trigger: 3.5 mm mono mini-jack. 6 V threshold
• Electrical Certifications: CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant)
• Mains Input Voltage: 110 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected)
• Power Consumption: Maximum 300 W, Standby <0.5 W (ErP compliance)
• Fuse Type: 20 mm T4AL 250 VAC
• External Dimensions (Including Amp, Drivers and Terminals (H x W x D)) 321 x 321 x 364 mm
• External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D)) 366.5 x 321 x 364 mm
• Weight (unpacked): 13.4 kg
• Sold As Single Unit
