Description

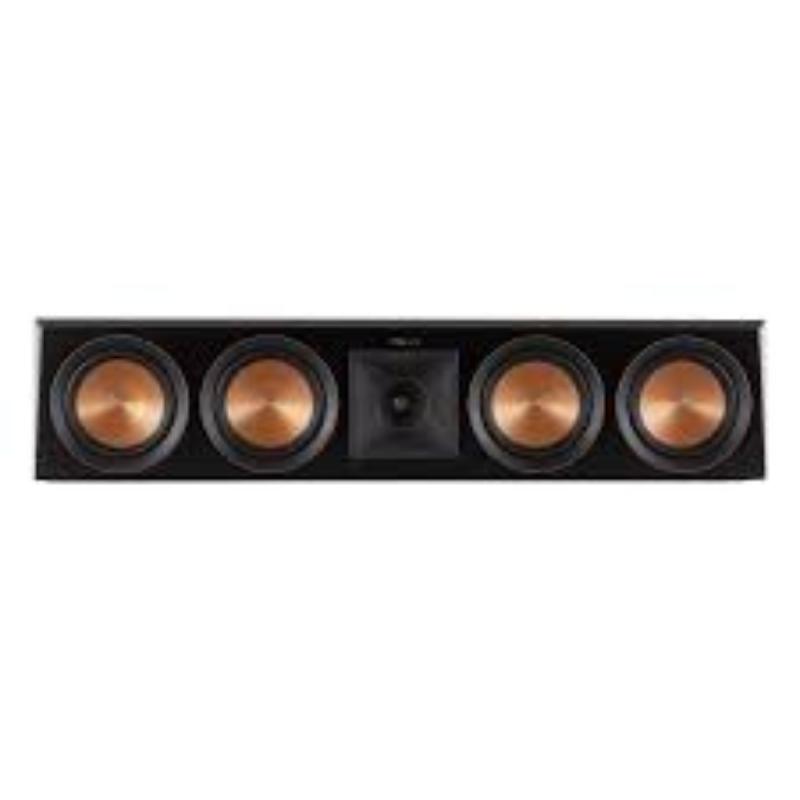

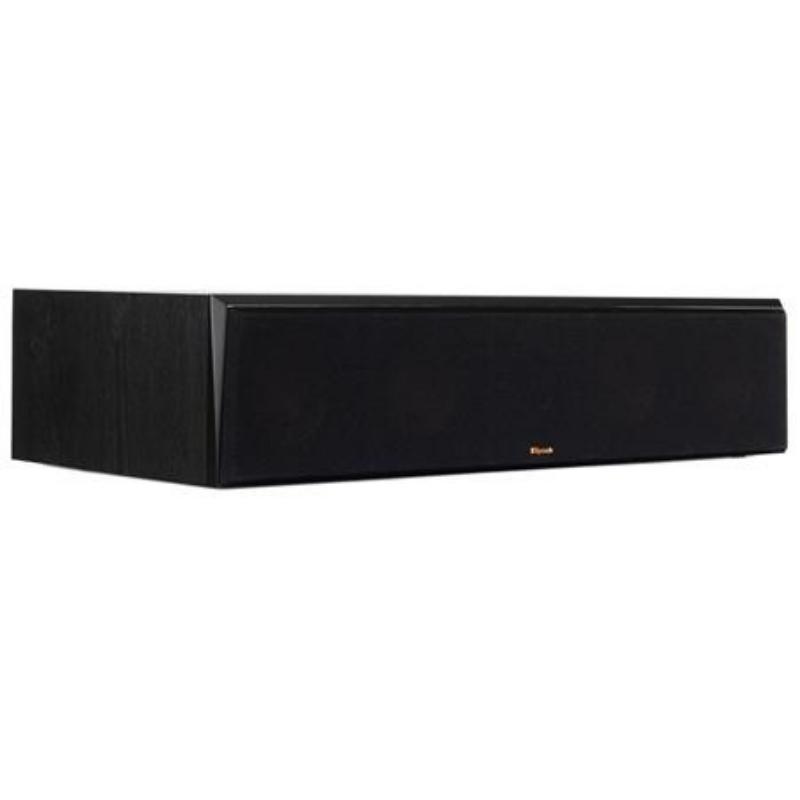

Description of the Klipsch RP504C II Centre Speaker:Â
Like Klipsch Products? Check them out:https://www.klipsch.com/
90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
- Horn loading maximizes efficiency and increases detail while focusing high frequencies on the listening area.
- Proprietary Tractrix® geometry provides the most efficient transfer of high-frequency waves into the listening area.
- The phase plug and compressed moulded silicon face ensure smooth frequency response.
When combined, the cleanest, most natural sound possible is created. - The second generation increases horn size for a larger soundstage and enhanced directivity.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
- The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance.
- LTS tweeters are a hallmark of previous Reference lines, making them a core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
- The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.
CERAMETALLIC WOOFERS – ALL-NEW DESIGN
- A signature feature of the Reference Premiere series, Cerametallicâ„¢ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency.
- New aluminium shorting rings reduce distortion as well as increase power handling
and the new motor structure improves transit response with more control with
greater speed and accuracy.
TRACTRIX PORTS
- Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies.
- Klipsch Tractrix ports have custom-designed inner flares that help reduce air turbulence entering the port.
- Less turbulent air helps reduce port noise for cleaner, more powerful bass.
NEW AND IMPROVED INPUT PANEL
- Featuring audiophile-grade wire and easily accessible aluminium binding posts for any connection type.
FURNITURE GRADE MATERIALS AND FINISHES
- Finishes include ebony vinyl and walnut vinyl that boast satin-painted baffles with a scratch-resistant finish.

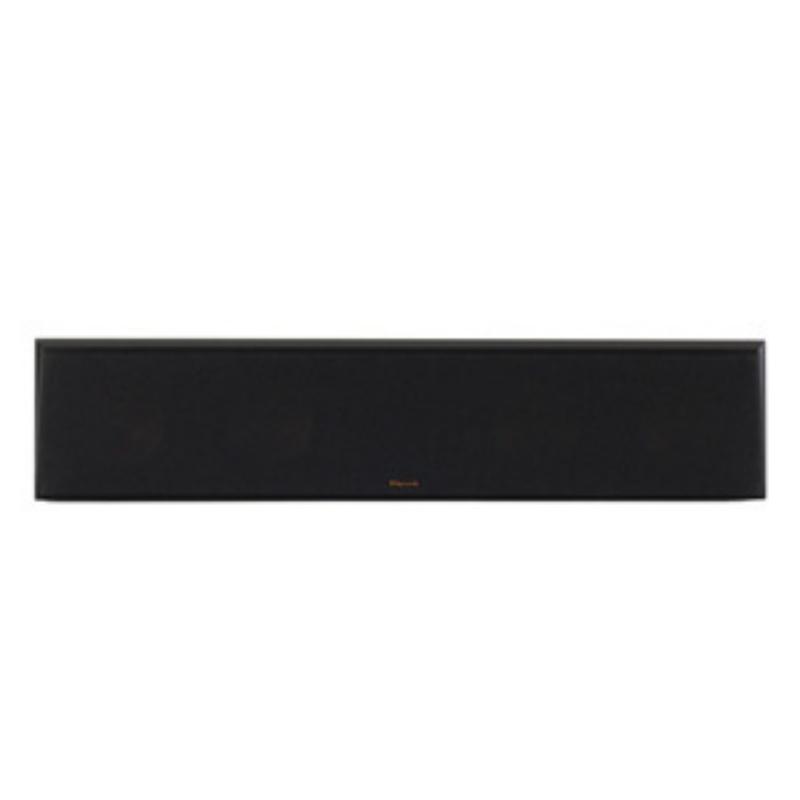

STRONG, FLEXIBLE, REMOVABLE GRILLE
- Attaches magnetically for an elegant transition from a powerful showstopper to a discrete performance piece.
CORK PADS
- Cork pads replace rubber bumpers for security on a stand or table.
SPECIFICATIONS
- FREQUENCY RESPONSE 50-25kHz /- 3dB
- SENSITIVITY* 96dB @ 2.83V / 1m*
- POWER HANDLING (CONT/PEAK) 150W/600W
- NOMINAL IMPEDANCE 8 Ohms Compatible
- CROSSOVER FREQUENCY 650Hz/1950Hz
- HIGH-FREQUENCY DRIVER 1″ Titanium LTS Vented Tweeter with Hybrid
Cross-Section Expanded Tractrix® Horn - LOW-FREQUENCY DRIVER Quad 5.25″ Cerametallic Cone Woofers with Faraday rings
- ENCLOSURE MATERIAL MDF (Internally Braced)
- ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port
- INPUTS Single aluminium binding posts
- HEIGHT INCHES (MM) 6.87″ (17.4 cm)
- WIDTH INCHES (MM) 32.06″ (81.4 cm)
- DEPTH INCHES (MM) 15.08″ (38.3 cm)
- PRODUCT WEIGHT LBS (KG) 36.3lb (16.45kg)
- FINISH Ebony, Walnut
- ACCESSORIES Angle screw
